非晶、納米晶技術是現代先進的科技，直接從融熔的鋼水經過快速冷卻成形為非晶帶材，這是冶金史上的革命。作為新型的軟磁材料，由于其獨特的優點，已廣泛于高性能磁芯，電感元件，變壓器。興磁科技 King Magnetics 目前已開發出用于共模電感的系列非晶、納米晶磁芯。

納米晶磁芯具有高的導磁率，頻率特性寬，非常適用于EMC濾波器，共模電感，以抑制共模噪聲。相對于傳統軟磁材料，比如鐵氧體磁芯，納米晶磁芯優勢明顯，高電感量，濾波效果好，體積小，銅線匝數少。

納米晶磁芯的居里溫度高達560℃，遠高于傳統鐵氧體磁芯只有200℃，高居里溫度使得納米晶磁芯具有高的熱穩定性，可以連續工作于120℃。

納米晶磁芯已成為目前共模電感磁芯的優選材質。



納米晶磁芯特性

材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: 80000 (典型值)
導磁率 @ 100KHz: 20000 (典型值)
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 18~25μm
磁芯型狀：環型磁芯



應用領域

>> EMC/EMI濾波器
>> 高頻開關電源
>> 計算機電源
>> 通信及網絡電源
>> 激光及X光電源
>> 逆變焊機及電鍍電源
>> 太陽能逆變器及風力發電系統
>> 家用電器
>> 不間斷電源(UPS)
>> 變頻器
>> 感應加熱設備
>> 鐵路電源



標準納米晶磁芯

Part No. Core dimensions Case dimensions Effictive
cross
section		 Mean
path
length		 Weight AL Typical Value**
od id h OD ID H AFe lFe mFe 10kHz 100kHz
mm mm mm mm mm mm cm2 cm g μH μH
KMN986545 9.8 6.5 4.5 11.3 5 6.1 0.06 2.6 1.1 25.5 6.4
KMN120805 12 8 5 14.4 6.5 7.0 0.08 3.1 1.6 28.0 6.8
KMN161006 16 10 6 17.9 8.1 8.1 0.14 4.1 4.16 43.0 10.1
KMN161008 16 10 8 17.8 8.4 9.9 0.19 4.1 5.5 46.1 11.5
KMN191510 19 15 10 21.2 13.5 12.3 0.16 5.3 6.0 36.1 8.8
KMN201208 20 12 8 21.7 10.8 9.9 0.25 5.0 9.1 55.2 13.6
KMN201210 20 12 10 22.6 10.5 12.5 0.31 5.0 11.4 62.4 15.6
KMN211308E* 21.3 13.6 8 22 13 8.8 0.24 5.5 9.5 44.1 11.0
KMN252010 25 20 10 28 17.2 13.2 0.20 7.1 10 28.4 7.3
KMN251610 25 26 10 28 14.0 13.1 0.35 6.4 16.4 67.0 15.5
KMN261610 25.5 16 10 28.3 13.9 13 0.39 6.6 18.6 57.1 14.3
KMN302010 30 20 10 33.2 17.8 13.3 0.39 7.9 22 59.3 14.0
KMN302015 30 20 15 33.6 17.8 17.8 0.59 7.9 33 88.0 20.0
KMN322010 32 20 10 34.4 18.1 13 0.47 8.2 28 57.6 14.4
KMN322015 32 20 15 35.5 18.5 19 0.64 8.3 42 86.4 21.6
KMN322115Y 32 21 15 34.6 17.9 18.2 0.70 8.2 38.8 77.7 19.4
KMN402515 40 25 15 44.4 22 18.8 0.88 10.2 65 99.0 23.1
KMN402520 40 25 20 ?45 ?21.5 24.7 1.17 10.2 86.6 115.2 28.8
KMN403215 40 32 15 44.9 28.8 18.8 0.47 11.3 38 48.0 11.3
KMN453015 45 30 15 ?48.3 26.4 18.2 0.88 11.8 74.9 87.6 20.0
KMN462725 46 27 25 ?48.8 24.6 27.8 1.85 11.5 153.9 162.4 40.6
KMN503220 50 32 20 53.8 28.5 24 1.40 12.9 131 109.6 27.4
KMN504020 50 40 20 53.6 37.1 23 0.78 14.1 80 45.0 13.5
KMN635025 63 50 25 ?69 46 29 1.27 17.7 163 59.0 17.5
KMN644020 64 40 20 ?68.2 37 23.5 1.87 16.3 222 115.2 28.8
KMN644025 64 40 25 67.4 37 29.3 2.34 16.3 277 144.0 36.0
KMN805020 80 50 20 83.8 46.6 25.0 2.34 20.4 346 94.0 28.0
KMN805025 80 50 25 83.5 47.2 28.8 2.93 20.4 433 144.0 36.0
KMN1008020 100 80 20 105 75 25 1.56 28.3 320 55.5 13.9
KMN1027625 102 76 25 107 71 30 2.54 27.9 514 91.1 22.8
KMN1309030 130 90 30 135 85 35 4.68 34.5 1172 136.1 34.0
KMN14010025 140 100 25 ?145 95 30 3.90 37.7 1065 104 26
KMN16013025 160 130 25 165 125 30 2.93 45.5 966 64.6 16.1
KMN17012025 170 120 25 175 115 30 4.88 45.5 1609 107.6 26.9
KMN20016030 200 160 30 207 153 37 4.50 56.5 1918 83.2 20.8

以上為標準尺寸，我們可根據客戶的要求、電感量、應用領域，為客戶定制高性能產品，也可以制作成噴涂的磁芯，有利于進一步減少體積。我們協助客戶設計選型，以便優化去選擇磁芯。

具體的磁性能，AL值，以我們的規格書為準，請聯系我們提供新的規格書。

* 環氧涂層.
** AL公差范圍: 下限為-30% ，上限不作限制。也可根據客戶要求制訂電感范圍。
KMN322115Y: 三相外殼 – 適用于三相共模電感

更多環氧涂層磁芯:http://hangzhougongying.com.cn/epoxy-coated-nanocrystalline-core.html

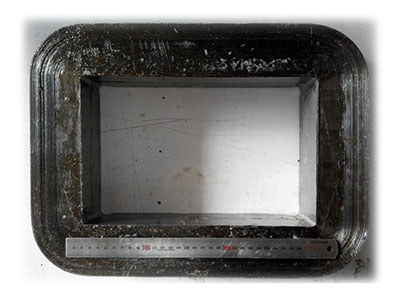

]]> 大功率變壓器用納米晶矩形磁芯 http://hangzhougongying.com.cn/nanocrystalline-rectangular-core.html Fri, 24 May 2024 17:12:04 +0000 http://hangzhougongying.com.cn/?p=166 nanocrystalline rectangular cores

Nanocrystalline rectangular cores for high power high frequency transformers, rectangular shape design for easy winding, suitable for high voltage transformers and pulse transformers.

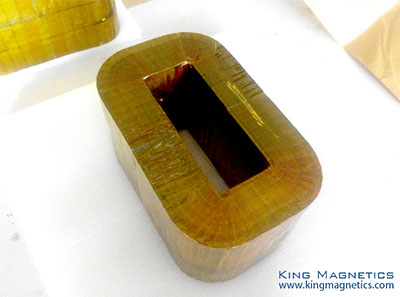

]]> 納米晶C型磁芯 http://hangzhougongying.com.cn/nanocrystalline-c-core.html Fri, 10 May 2024 21:03:14 +0000 http://hangzhougongying.com.cn/?p=157 Nanocrystalline c cores

Nanocrystalline C core is available now. Upgrade product of amorphous c core, with high saturation flux density, low coercivity, low core loss, very low noise, higher frequency up to 20KHz, suitable for main power transformer, output inductor, boost PFC choke coil. Can replace ferrite core. Dimensions can be custom-made.

Features

Material: Fe-based nanocrystalline
Saturation flux density induction: 1.25T
Curie temperature(℃): 560
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 130
Ribbon thickness: 25μm
Core shape: C type cut core

Applications

>> High frequency transformer (frequency recommend 20-30KHz)
>> Solar inverter filter
>> PFC choke
>> Differential mode choke
>> Output filter
>> Audio equipment

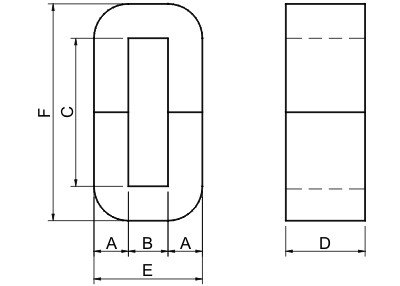

Standard core dimensions

amorphous and nanocrystalline c cores

Part?No. Core?dimensions Mean
path
length		 Effictive
cross
section		 Weight
A B C D E F LFe Ae Wt
mm mm mm mm mm mm cm cm2 g
KMNC-6.3 10 11 33 20 31 53 11.6 1.56 146
KMNC-8 11 13 30 20 35 52 11.7 1.72 166
KMNC-10 11 13 40 20 35 62 13.7 1.72 192
KMNC-16A 11 13 40 25 35 62 13.7 2.15 240
KMNC-16B 11 13 50 25 35 72 15.7 2.15 272
KMNC-20 11 13 50 30 35 72 15.7 2.57 326
KMNC-25 13 15 56 25 41 82 17.9 2.54 366
KMNC-32 13 15 56 30 41 82 17.9 3.04 439
KMNC-40 13 15 56 35 41 82 17.9 3.04 426
KMNC-50 16 20 70 25 52 102 22.7 3.12 567
KMNC-63 16 20 70 30 52 102 22.7 3.74 680
KMNC-80 16 20 70 40 52 102 22.7 4.99 884
KMNC-100 16 20 70 45 52 102 22.7 5.62 994
KMNC-125 19 25 83 35 63 121 27.2 5.19 1128
KMNC-160 19 25 83 40 63 121 27.2 5.93 1260
KMNC-200 19 25 83 50 63 121 27.2 7.41 1575
KMNC-250 19 25 90 60 63 128 28.6 8.89 1987
KMNC-320 22 35 85 50 79 129 30.6 8.58 2047
KMNC-400 22 35 85 65 79 129 30.6 11.15 2662
KMNC-500 25 40 85 55 90 135 32.5 10.73 2722
KMNC-630 25 40 85 70 90 135 32.5 13.65 3464
KMNC-800A 25 40 85 85 90 135 32.5 16.58 4207
KMNC-800B 30 40 95 85 100 155 36.1 19.89 5602
KMNC-1000 33 40 105 85 106 171 39.0 21.88 6665

Other specifications are available according to customer’s requirements.

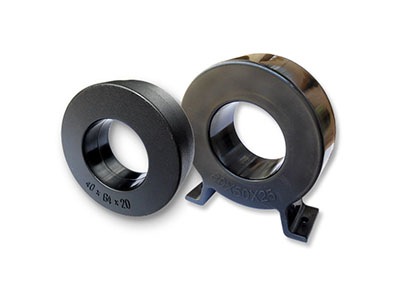

]]> 高頻變壓器用納米晶磁芯 http://hangzhougongying.com.cn/nanocrystalline-transformer-core.html Sun, 21 Apr 2024 22:31:39 +0000 http://hangzhougongying.com.cn/?p=127 Nanocrystalline Cores for High Frequency Transformer

功率變壓器用納米晶磁芯具有高導磁率，低矯頑力，低鐵損，適用于高頻逆變電源，逆變焊機，電鍍電源，光伏逆變器，激光電源，X光電源，醫療電源，大功率高壓除塵電源等場合。



性能特點

磁芯材質：鐵基納米晶磁芯
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 20000
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 90
帶材厚度: 25μm
磁芯形狀：環型，矩形，C型

高飽和磁感應強度 – 相對傳統鐵氧體磁芯，可以減少變壓器體積
高導磁率 – 提升效率，低激磁功率，減少銅損
低矯頑力和低鐵損 – 變壓器低溫升，節能低碳環保
高居里溫度 – 溫度特性好，工作溫度 -40 – 130℃



應用領域

>> 逆變焊機
>> 電鍍電源
>> 功率放大器
>> 大功率激光電源
>> 通信電源，鐵路、高鐵電源
>> 高頻感應加熱電源
>> 高頻高壓除塵電源
>> 大功率高頻開關電源



納米晶磁芯與傳統鐵氧體磁芯的對比



性能 納米晶磁芯 鐵氧體磁芯
飽和磁感應強度(T) 1.25 0.5
剩磁 (T) (20KHz) <0.3 0.2
鐵損 (20KHz/0.2T) (W/Kg) <3.4 7.5
鐵損 (20KHz/0.5T) (W/Kg) <30 不能使用
鐵損 (50KHz/0.3T) (W/Kg) <40 不能使用
導磁率 (20KHz) >20,000 2000
矯頑力 (A/m) <2.0 6
飽和磁致伸縮系數(*10^-6) <2 4
電阻率 (μΩ.cm) 90 10^6
居里溫度(℃) 560 <200
疊片系數 >0.75 n/a

變壓器用納米晶磁芯尺寸和參考功率



Part?No. Core?dimensions Case?dimensions Effictive
cross
section		 Mean
path
length		 Weight Power
@
20KHz		 外殼*
od id h OD ID H AFe lFe mFe P
mm mm mm mm mm mm cm2 cm g KW
KMN503220T 50 32 20 53.8 28.5 24 1.40 12.9 131 0.5-1 O
KMN644020T 64 40 20 68.2 37 23.5 1.87 16.3 222 1-3 O
KMN805025T 80 50 25 83.5 47.2 28.8 2.93 20.4 433 3-5 O
KMN805025T-2 80 50 25 83.5 47.2 28.8 2.93 20.4 433 3-5 Ω
KMN1006020T 100 60 20 106 55 25 3.12 25.1 568 5-7 O
KMN1006020T-2 100 60 20 106 55 25 3.12 25.1 568 5-7 Ω
KMN1207020T 120 70 20 125 65 25 3.90 29.8 843 7-10 O
KMN1207020T-2 120 70 20 125 65 25 3.90 29.8 843 7-10 Π
KMN1207030T 120 70 30 125 65 36 5.85 2.98 1265 10-15 O
KMN1207030T-2 120 70 30 125 65 36 5.85 2.98 1265 10-15 Π
KMN1308040T 130 80 40 136 75 46 7.80 33.0 1864 15-20 O
KMN1308040T-4 130 80 40 136 75 46 7.80 33.0 1864 15-20 H
KMN1308050T 130 80 50 136 75 56 9.75 33.0 2331 20-25 O
KMN1308050T-4 130 80 50 136 75 56 9.75 33.0 2331 20-25 H

20KHz功率僅供參考，實際變壓器輸出功率以實際設計設計為準.
其它規格型號可以定制.

* ?外殼類型:

O型 – 環型納米晶磁芯;

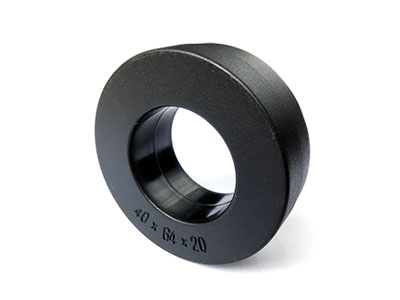

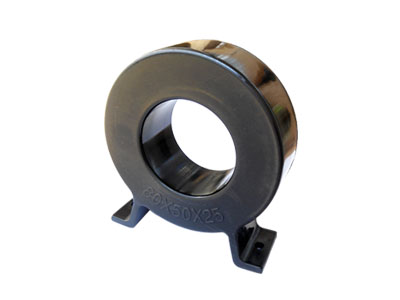

Toroidal nanocrystalline transformer core KMN644020T
Ω 型- 帶兩腳的納米晶磁芯.

Toroidal nanocrystalline cores with two legs



Π 型- 帶兩腳的納米晶磁芯.

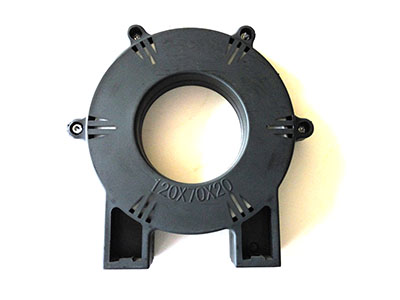

High frequency nanocrystalline transformer core KMN1207020T-2

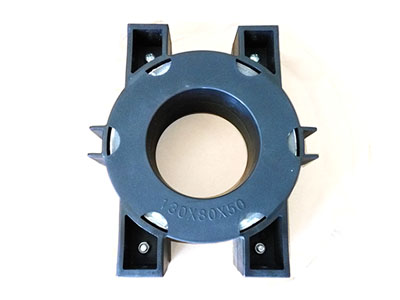

H型 – 帶四腳的納米晶磁芯.

Transformer nano core with four legs KMN1308050T-4



EMC共模電感用納米晶磁芯:?http://hangzhougongying.com.cn/nanocrystalline-core.html

]]> 納米晶磁片，手機無線充電器磁片，通信設備屏蔽片，薄形非晶納米晶屏蔽磁片 http://hangzhougongying.com.cn/namijingcipian.html Thu, 14 Mar 2024 15:56:57 +0000 http://hangzhougongying.com.cn/?p=374 納米晶磁片

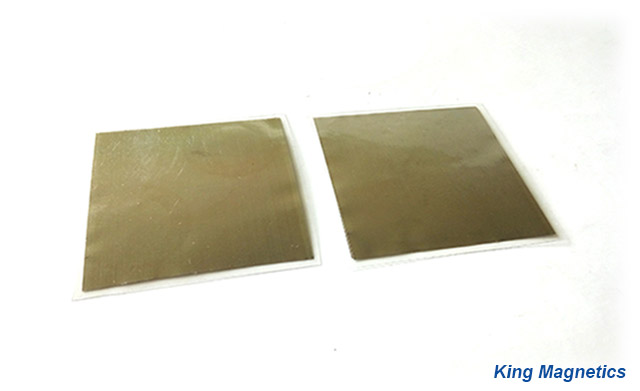

納米晶磁片



納米晶磁片具有高的導磁性能。主要用于手機無線充電接收端，屏蔽電磁對手機的干擾，減少能量的損失，提高充電效率。也可以用于其它無線充電領域，比如汽車無線充電器。納米晶磁片厚度可以達到0.1mm，也可以增加厚度以獲得進一步的性能，可以根據客戶需求訂做各種尺寸及形狀。



主要應用領域：

>> 手機無線充電器

>> 通信設備

>> 磁屏蔽

>> 汽車無線充電器



納米晶材料特性

材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 50000
導磁率 @ 100KHz: >10500
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 25μm
磁芯型狀：橢圓型、矩形磁芯

]]> 如何計算非晶納米晶磁芯的電感量 http://hangzhougongying.com.cn/calculate-nanocrystalline-core-inductance.html Tue, 12 Mar 2024 21:56:34 +0000 http://hangzhougongying.com.cn/?p=187

How to calculate inductance of a nanocrystalline core inductor?

Calculate nanocrystalline core just the same as other cores, like ferrite, sendust core, MPP core or High flux core.

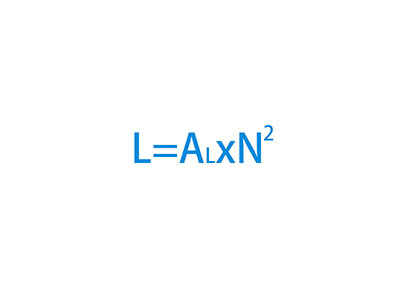

L=AL*N^2

L – inductance of the inductor or choke, unit: μH;
AL – AL valuve of the nanocrystalline core, which is provide on our specifictation sheet, unit: μH;
N – turns of winding, please count the numbers through the core.

for example:

Calculate inductance of 10 turns on a KMN261610 nanocrystalline core:

AL – 37.1 μH Min @ 10KHz, 0.25V;
N – 10Ts;
L=AL*N^2=37.1*10^2=3710μH=3.710 mH Min @ 10Khz, 0.25V

]]> 非晶納米晶磁芯生產工藝流程 http://hangzhougongying.com.cn/amorphous-technology-know-how.html Mon, 11 Mar 2024 10:45:13 +0000 http://hangzhougongying.com.cn/?p=139 Amorphous and Nanocrystalline Ribbon Casting Maching



King Magnetics興磁科技主要生產非晶、納米晶磁芯。公司擁有自動化生產機器，包括自動繞帶機，自動控溫真空熱處理爐，縱磁爐，橫磁爐，切割機，裝配機等一系列制造設備。

Alloy Melting

Melting Iron, Silicon, Boron, Nb, Copper to form the alloy.

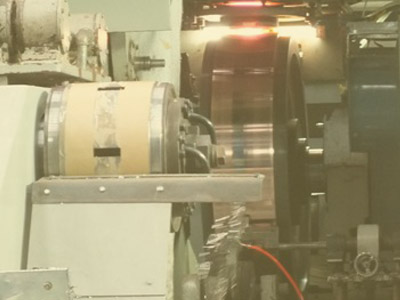

Ribbon Spinning

Alloy is remelted and quenched on a fast rotation copper wheel to form amorphous ribbon.

Ribbon Sliting

Wide amorphous ribbon will be slited to the width which core needs.

Core Winding

Slited scrip will be automatically wound to amorphous and nanocrytalline core.

Core Heat Treatment

Amorphous core under heat treatment to release stress to get good performance; Nanocrystalline core under heat treatment to form nanocrystalline grain and the best magnetic properties.

Core Finished

Heat treated core will be fixed to a plastic case or be under epoxy coated.

Core Inspection

All our amorphous and nanocrystalline cores will be 100% tested before shipping.

]]> 非晶C型磁芯 http://hangzhougongying.com.cn/amorphous-c-core.html Sun, 10 Mar 2024 14:06:58 +0000 http://hangzhougongying.com.cn/?p=67 amorphous-core

非晶C型磁芯具有高磁感應強度Bs，低鐵損，方便安裝，易于繞線。適用于音頻變壓器，光伏逆變器濾波電感，中頻變壓器，大功率輸出濾波器，變頻空調PFC電感等場合。

性能特點

磁芯材質：鐵基納米晶
飽和磁感應強度: 1.56T
居里溫度(℃): 410
疊片系數: >0.8
飽和磁致伸縮系數(*10^-6): <30
電阻率(μΩ.cm): 130
帶材厚度: 25μm
磁芯型狀: C core

應用領域

>> 光伏逆變器濾波電感
>> 功率因數校正器PFC電感
>> 音頻變壓器
>> 中頻變壓器
>> 差模電感
>> 大功率開關電源輸出濾波電感

標準磁芯規格表

c-core

Part?No. Core?dimensions Mean
path
length		 Effictive
cross
section		 Weight
A B C D E F lFe AFe mFe
mm mm mm mm mm mm cm cm2 g
KMAC-20 11 13 50 30 35 72 15.7 2.94 331
KMAC-32 13 15 56 30 41 82 17.9 3.47 447
KMAC-40 13 15 56 35 41 82 17.9 4.05 522
KMAC-50 16 20 70 25 52 102 22.7 3.56 580
KMAC-63 16 20 70 30 52 102 22.7 4.27 696
KMAC-80 16 20 70 40 52 102 22.7 5.70 928
KMAC-100 16 20 70 45 52 102 22.7 6.41 1043
KMAC-125 19 25 83 35 63 121 27.2 5.92 1157
KMAC-160 19 25 83 40 63 121 27.2 6.76 1322
KMAC-200 19 25 83 50 63 121 27.2 8.46 1653
KMAC-250 19 25 90 60 63 128 28.6 10.15 2085
KMAC-320 22 35 85 50 79 129 30.6 9.79 2148
KMAC-400 22 35 85 65 79 129 30.6 12.73 2793
KMAC-500 25 40 85 55 90 135 32.5 12.24 2856
KMAC-630 25 40 85 70 90 135 32.5 15.58 3635
KMAC-800A 25 40 85 85 90 135 32.5 18.91 4414
KMAC-800B 30 40 95 85 100 155 36.1 22.70 5879
KMAC-1000 33 40 105 85 106 171 39.0 24.96 6994

其它規格尺寸可以根據客戶需求定做。

]]> 定制非晶納米晶磁芯及磁性元器件，專為高校、研究所、實驗室、研發中心定制 http://hangzhougongying.com.cn/components.html Sun, 10 Mar 2024 10:42:16 +0000 http://hangzhougongying.com.cn/?p=135 Common mode chokes made of nanocrystlline cores



We design amorphous and nanocrystalline components, chokes, inductors, transformers for customers.

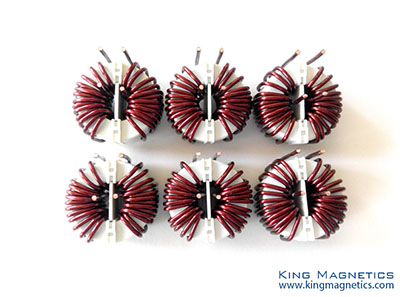

Common mode choke with nanocrystalline core has the best performance compared with traditional ferrite core. And small size, low power consuption, low copper wire.

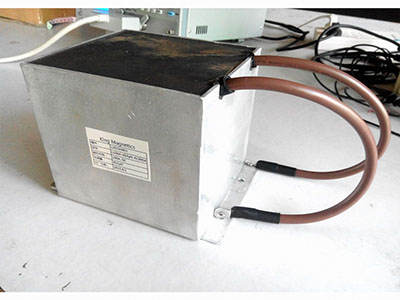

Amorphous Inductors for Large Current Application

Output filter inductor made of amorphous C core can withstand large DC current, low core loss, low temperature rise, high inductance and high temperature stability.

High frequency transformer for frequency from 400Hz up to 100KHz can use amorphous and nanocrystalline core, with merits of low core loss, high saturation flux density, high efficiency.

According to clients’ drawings, requirments, we select the best solusion, the optimized core and make the excellent components.

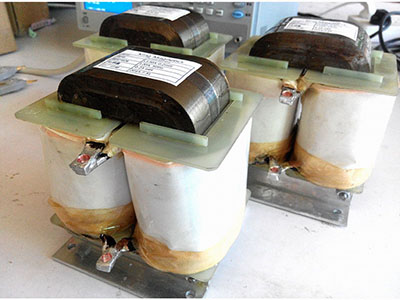

Amorphous Reactors for Large Current Applications

]]> 納米晶共模電感工作原理 http://hangzhougongying.com.cn/common-mode-choke.html Sat, 09 Mar 2024 21:54:57 +0000 http://hangzhougongying.com.cn/?p=184 How does nanocrystalline common mode choke work?

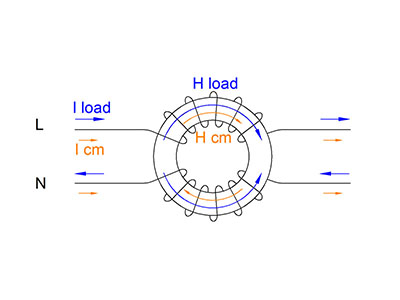

共模電感的工作原理：

共模電感是一個高導磁率的磁芯上有兩個繞組，這兩個繞組的電流按同一方向流入，同一方向流出，負載電流產生的磁場在磁芯中相互抵消。當共模噪聲流進時，由于方向不同向，于是在磁芯中產生磁場，而由于磁芯的高導磁率而把噪聲抑制。

興磁科技King Magnetics的納米晶磁芯適用于共模噪聲濾波器，電感量較高，頻率寬。納米晶磁芯適用于替代傳統鐵氧體。

]]>
